| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | IZUMI |
| 인증: | ISO/TS16949 |
| 모델 번호: | 30100-NA04D |
| 최소 주문 수량: | 10개 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 중립 패키지 또는 고객의 요청으로 |
| 배달 시간: | 5~10일 |
| 지불 조건: | D/A,D/P,T/T,웨스턴 유니온 |
| 공급 능력: | 1000 PC/월 |
| 강조하다: | Nissan heavy duty clutch plate,OEM truck clutch plate,30100-NA04D clutch plate |
||
|---|---|---|---|

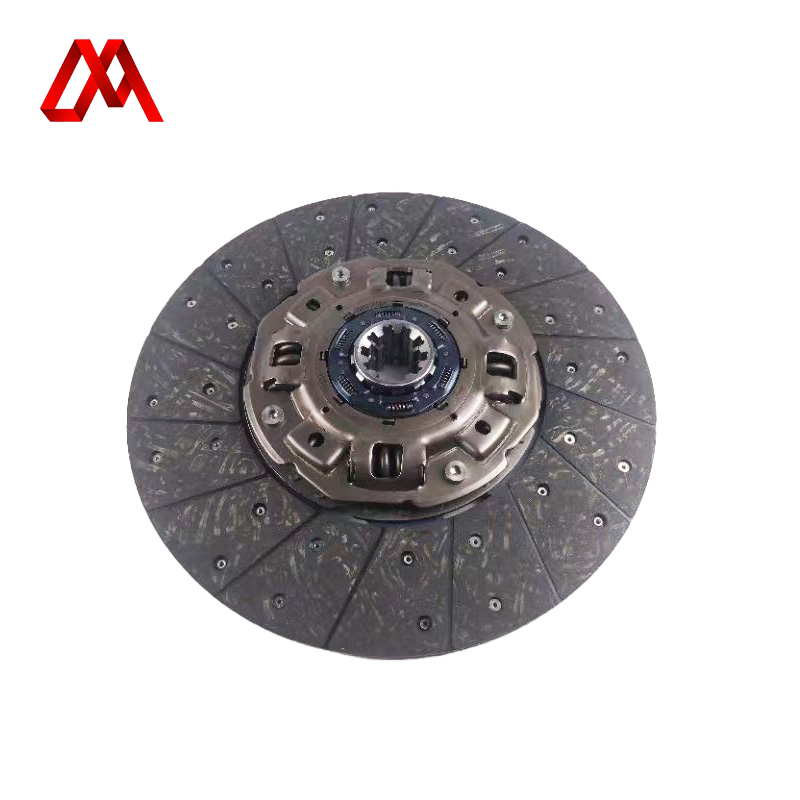

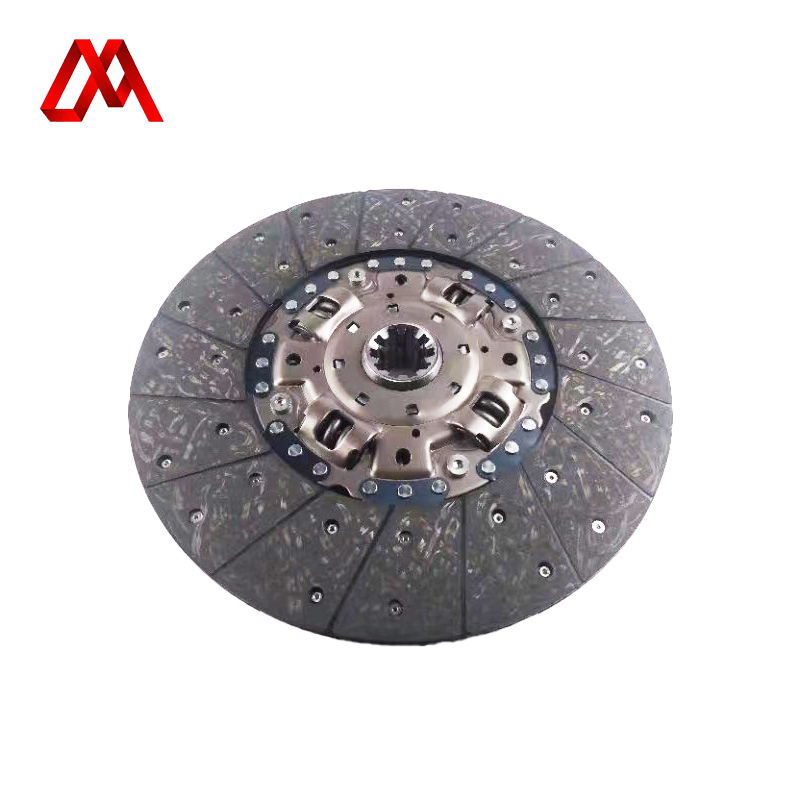

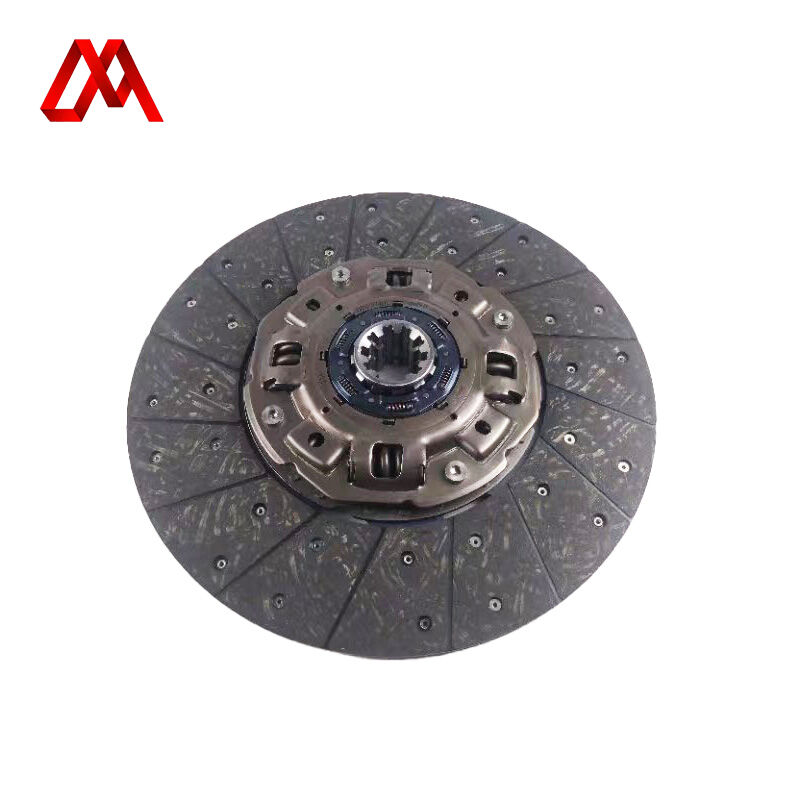

OEM Standard 30100-NA04D Clutch Plate NISSAN Heavy Duty Truck Parts
Clutch Release Bearing Precautions
1. According to the operating regulations, avoid the clutch half-engaged and half-disengaged, and reduce the number of times the clutch is used.
2. Pay attention to maintenance. Use the steaming method to soak the butter so that it has sufficient lubricant during regular or annual inspection and maintenance.
3. Pay attention to leveling the clutch release lever to ensure that the elastic force of the return spring meets the requirements.
4. Adjust the free stroke to meet the requirements (30-40mm) to prevent the free stroke from being too large or too small.
5. Minimize the number of joining and separation, and reduce the impact load.
6. Step on it lightly and easily to make it join and separate smoothly.
ISUZU BVP ITEMS: CLUTCH DISC
| ITEM | BVP NO. | ISUZU GENUINE PART NO. | MODEL | ENGINE |
| 1 | 1-87610119-0 | 1-31240851-1 | FR,FS,FT,FV | 4H,6H |
| 2 | 1-87610143-0 | 1-31240977-2 | FG,GG | 6H |
| 3 | 1-87610141-0 | 1-31240980-0 | CH,CY,CX,FG | 6W |
| 4 | 1-87610140-0 | 1-31260040-1 | FC,FG,GG,LR | 4H,6H |
| 5 | 5-87610108-0 | 8-97070657-0 | NH,NK | 4J |
| 6 | 5-87610107-0 | 8-97310275-0 | NK | 4B |
| 7 | 5-87610080-1 | 8-97362235-1 | NP | 4H |
| 8 | 5-87610086-0 | 8-97368061-0 | TB,TF | 4J |
| 9 | 5-87610125-0 | 8-97368062-0 | TF | 4J |
| 10 | 5-87610084-0 | 8-97368063-0 | NH,NK,NM | 4J |
| 11 | 5-87610049-2 | 8-97377149-0 | NK,NM,NP | 4H,4J |
| 12 | 5-87610078-1 | 8-97389910-0 | NP | 4B,4H,4J |
| 13 | 5-87610077-1 | 8-98037004-2 | NH,NK,NM,NP | 4J,4H |
| 14 | 5-87610083-0 | 8-98080661-0 | NH,NK,NM | 4H |
| 15 | 5-87610092-0 | 8-98164917-0 | NP | 4H |
| 16 | 5-87610105-0 | 8-98164918-0 | NP | 4H |
ISUZU BVP ITEMS: CLUTCH PRESSURE PLATE
| ITEM | BVP NO. | ISUZU GENUINE PART NO. | MODEL | ENGINE |
| 1 | 1-87610120-0 | 1-31220374-2 | FR,FS,FT,FV | 4H,6H |
| 2 | 1-87610146-0 | 1-31220377-2 | FC,FG,GG,LT | 4H,6H |
| 3 | 1-87610145-0 | 1-31220380-2 | FG,GG,GX | 6H |
| 4 | 5-87610085-0 | 8-94259132-1 | NH,NK,NM | 4J |
| 5 | 5-87610087-0 | 8-94435011-1 | TB,TF,UC | 4J |
| 6 | 5-87610104-0 | 8-97038831-2 | NP | 4H |
| 7 | 5-87610082-0 | 8-97109246-0 | NK,NP,TF,TB | 4J |
| 8 | 5-87610079-0 | 8-97169534-0 | NK,NM,NP | 4H |
| 9 | 5-87610144-0 | 8-97259693-0 | NK,NM,NP | 4H |
| 10 | 5-87610050-1 | 8-97310796-0 | NK,NM,NP | 4H |
| 11 | 5-87610081-0 | 8-97351794-0 | NP | 4H |
| 12 | 5-87610091-0 | 8-98040093-0 | NH,NK,NM,NP | 4H,4J |
If you are interested in the Japanese truck parts business, we'll provide you with the accurate and efficient service with honor. Please feel free to contact with us.
